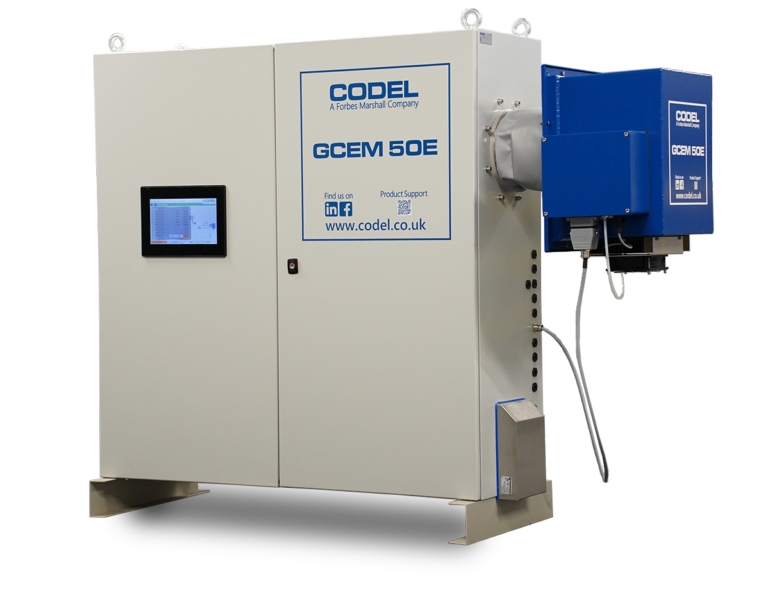

GCEM 50E
Analizador de gases de extracción
Backed by over 40 years of experience, CODEL understands how to build instruments that perform. The GCEM 50E combines proven reliability with next- generation precision.
Overview:
The GCEM 50E TUV QAL1 Certified hot/wet extractive multi-channel gas analyser is CODEL’s industry-proven continuous emissions monitor for difficult applications. Designed exclusively for use on a wide range of applications where the flue gas temperature is abnormally high, low or saturated.
With over four decades of development, knowledge and practical experience have been utilised to produce this advanced technology gas analyser which gives complete flexibility of use on process or emissions applications whilst delivering super accuracy and repeatability at a competitive price.
Compatible with:
Certified to:
TUV QAL1 – EN 15267 & EN 14181
Features and benefits:
Field Mountable
Engineered for flexibility, the GCEM 50E can be installed directly at the measurement point, reducing space requirements and installation costs.
3 Way Interlock Start Ups
Smart safety checks make sure the system only runs when conditions are right - protecting components, reducing maintenance, and ensuring accurate, reliable data every time.
Plug & Play Consumables Readily Available
Quick and easy replacement of key components keeps maintenance simple and downtime to a minimum.
Integrated Touch Screen Display
A clear, user-friendly interface provides instant access to live data, diagnostics, and system control.
No Sample Conditioning Required
Designed for simplicity and reliability, the GCEM 50E measures directly from the source without the need for costly sample conditioning systems.
Meets VDI 4201 Data Requirement
Fully compliant with the latest VDI 4201 standards to ensure accurate, traceable, and reliable emissions data.
Especificaciones técnicas
| Gas | CO, NO, NO2, N20, SO2, HCL, CH4, CO2, H2O, O2 |
| Certified Measurement Ranges | 0 - 100ppm (NO2,CO,NO,SO2,N20,CH4,HCL) 0 - 25% (CO2 and O2) 0 - 30% (H20) |
| Response Time (T90) | < 180 Seconds |
| Temperatura ambiente | -20°C to 50°C |
| Fuente de alimentación | 240 VAC (-15% to +10% from Nominal Supply) |
| Construcción | Cabinet: Coated Mild Steel Head: Epoxy Coated Aluminium 1750 x 1300 x 500mm |
| Outputs | 1 x RS485 - Standard 16 x mA Outputs (Configurable) - Optional 16 x Relay Outputs (Configurable) - Optional |
| Software | Local Touch Screen HMI Compatible con CODEL Cloud |
| Certificación | TUV QAL1 - EN 15267 & EN 14181 |
Puedes encontrar las especificaciones completas en la ficha técnica del producto o en el folleto.
