Overview:

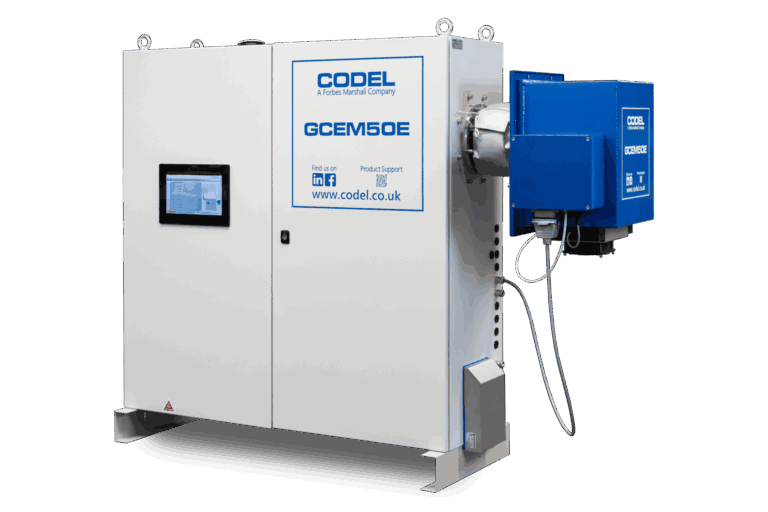

The GCEM 50E TUV QAL1 Certified hot/wet extractive multi-channel gas analyser is CODEL’s industry-proven continuous emissions monitor for difficult applications. Designed exclusively for use on a wide range of applications where the flue gas temperature is abnormally high, low or saturated.
With over four decades of development, knowledge and practical experience have been utilised to produce this advanced technology gas analyser which gives complete flexibility of use on process or emissions applications whilst delivering super accuracy and repeatability at a competitive price.
Features and benefits:
Field Mountable
Engineered for flexibility, the GCEM 50E can be installed directly at the measurement point, reducing space requirements and installation costs.
3 Way Interlock Start Ups
Smart safety checks make sure the system only runs when conditions are right - protecting components, reducing maintenance, and ensuring accurate, reliable data every time.
Plug & Play Consumables Readily Available
Quick and easy replacement of key components keeps maintenance simple and downtime to a minimum.
Integrated Touch Screen Display
A clear, user-friendly interface provides instant access to live data, diagnostics, and system control.
No Sample Conditioning Required
Designed for simplicity and reliability, the GCEM 50E measures directly from the source without the need for costly sample conditioning systems.
Meets VDI 4201 Data Requirement
Fully compliant with the latest VDI 4201 standards to ensure accurate, traceable, and reliable emissions data.
Product Specification
| Gas | CO, NO, NO2, N20, SO2, HCL, CH4, CO2, H2O, O2 |
| Certified Measurement Ranges | 0 - 100ppm (NO2,CO,NO,SO2,N20,CH4,HCL) 0 - 25% (CO2 and O2) 0 - 30% (H20) |
| Response Time (T90) | < 180 Seconds |
| Ambient Temperature | -20°C to 50°C |
| Power Supply | 240 VAC (-15% to +10% from Nominal Supply) |
| Construction | Cabinet: Coated Mild Steel Head: Epoxy Coated Aluminium 1750 x 1300 x 500mm |
| Outputs | 1 x RS485 - Standard 16 x mA Outputs (Configurable) - Optional 16 x Relay Outputs (Configurable) - Optional |
| Software | Local Touch Screen HMI CODEL Cloud Compatible |
| Certification | TUV QAL1 - EN 15267 & EN 14181 |
You can find the full specification in the product data sheet / brochure.
What is the GCEM 50E used for?
The GCEM 50E is a QAL1-certified hot/wet extractive gas analyser designed for continuous emissions monitoring in demanding applications. It can continuously measure gases including CO, NO, NO₂, N₂O, SO₂, HCl, CH₄, CO₂, H₂O and O₂, making it suitable for applications such as waste-to-energy, combustion plants, thermal oxidisers, biomass boilers and gas turbines.
What does QAL1 certification mean?
QAL1 certification demonstrates that the analyser has been independently assessed against the relevant requirements for performance and suitability for continuous emissions monitoring. The GCEM 50E is TÜV QAL1 certified to EN 15267 and EN 14181.
Can the GCEM 50E handle high, low or saturated flue gases?
Yes. The GCEM 50E has been specifically designed for applications where flue gas temperatures or moisture conditions make conventional gas analysis difficult. Its hot/wet extractive configuration allows it to be used where the flue gas is abnormally hot, cold or saturated.
Does the GCEM 50E require a sample conditioning system?
No. The GCEM 50E is designed to operate without a conventional sample conditioning system, helping simplify the installation and reduce system complexity and associated maintenance.
How many gases can the GCEM 50E measure?
The GCEM 50E can measure up to 10 gases continuously, depending on the configuration. Available measurements include CO, NO, NO₂, N₂O, SO₂, HCl, CH₄, CO₂, H₂O and O₂.
How is the GCEM 50E installed?
The GCEM 50E is field-mountable and can be installed directly at the measurement point. The system also incorporates sample probe control, heated sample-line control and automated probe purge functionality, helping simplify installation and ongoing operation.
How much maintenance does the GCEM 50E require?
The system has been designed to simplify maintenance, with readily available plug-and-play consumables, a quick-release cooling fan and modular electronics. Continuous sample-flow monitoring and onboard diagnostics can also help identify potential issues before they affect measurement performance.
Can the GCEM 50E be integrated with my existing CEMS?
The GCEM 50E provides RS485 communications as standard, with configurable analogue and relay outputs available as options. It is also compatible with CODEL Cloud, allowing system data to be accessed remotely.
Is the GCEM 50E suitable for US emissions monitoring applications?
The GCEM 50E can be considered for US CEMS applications, but the required regulatory approvals and performance specifications depend on the specific application and applicable EPA regulation. US EPA requirements are typically defined by the relevant regulatory subpart and may specify particular performance specifications, reference methods and quality-assurance requirements. For example, US EPA performance specifications include PS-2 for SO₂/NOx, PS-3 for O₂/CO₂ and PS-4 for CO. CODEL can assess your application and advise whether the GCEM 50E configuration is appropriate for the applicable US requirements
Can the GCEM 50E be used for waste-to-energy applications?
Yes. The GCEM 50E is designed for demanding emissions-monitoring applications and is specifically listed for waste-to-energy final emissions monitoring. It can measure key gases including CO, NOx, SO₂, HCl, CO₂, H₂O and O₂, depending on configuration.
Can CODEL help specify the right GCEM 50E configuration?
Yes. Because the appropriate analyser configuration depends on factors such as the gases being measured, measurement ranges, flue-gas conditions and applicable regulatory requirements, CODEL can work with customers to determine the appropriate system configuration.
