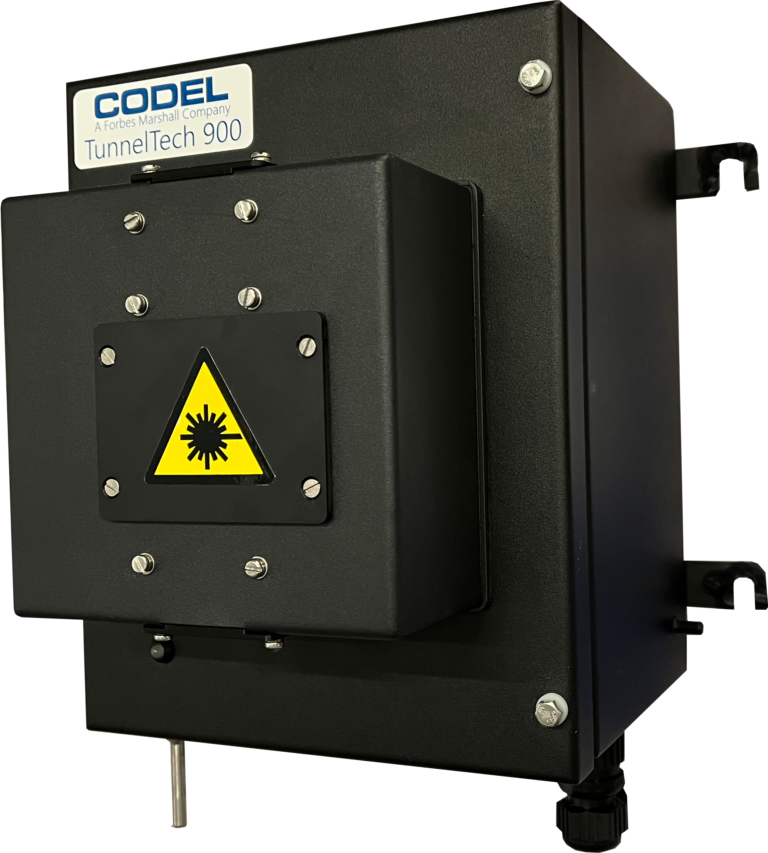

TunnelTech 900
Electrochemical CO, NO, NO2, SO2 Monitor with Visibility using Scattered Light
The TunnelTech 900 is an all-in-one Visibility and air quality monitor based on Scattered Light measurement technology for visibility and electrochemical cell technology for gas measurements.
Overview
A low cost precision road & rail tunnel monitor using proven technology to provide accurate and rapid results.
The TunnelTech 900 is an all-in-one Visibility and air quality monitor based on Scattered Light measurement technology for visibility and electrochemical cell technology for gas measurements.
It offers reliable visibility measurement and optional electrochemical cells to deliver superb and reliable gas measurement at a very competitive price.
Features & Benefits
- Measure Visbility, CO, NO, NO2, SO2 in one compact sensor.
- No fog interference with optional heater.
- Visibility, smoke detection compact analyser.
- Advanced electrochemical cell technology.
- Easy installation with minimal wiring required.
- Minimal maintenance requirements.
- Easy to calibrate.
Product Specification
| Gas Species | Visibility (standard), CO, NO, NO2 & SO2 (optional) |
| Measuring Units | m-1 (K factor) / E/m for visibility, ppm for CO, NO, NO2, SO2. |
| Calibration | Factory calibrated, manual span check. |
| Measurement Technique | Electrochemical Cell, Scattered Light for Visibility |
| Measurement range (typical) | CO : 0 – 300ppm , NO : 0 – 30ppm , NO2 : 0 – 5ppm, SO2: 0 to 20 ppm, Vis: 0 – 0.015 m-1 |
| Construction | Corrosion resistant epoxy coated SS316L Designed to IP69K |
| Serial Data | Bi-directional RS485 Modbus RTU Protocol |
| Display | Monochrome LCD Display & Keypad Membrane |
| Power Supply | 24V DC |
Related Products
TunnelTech 305 - Air Flow Monitor
TunnelTech 400 - Single Gas Monitor
