DCEM 6000
QAL1 Dust Analyser
Triboelectric Dust Analyser

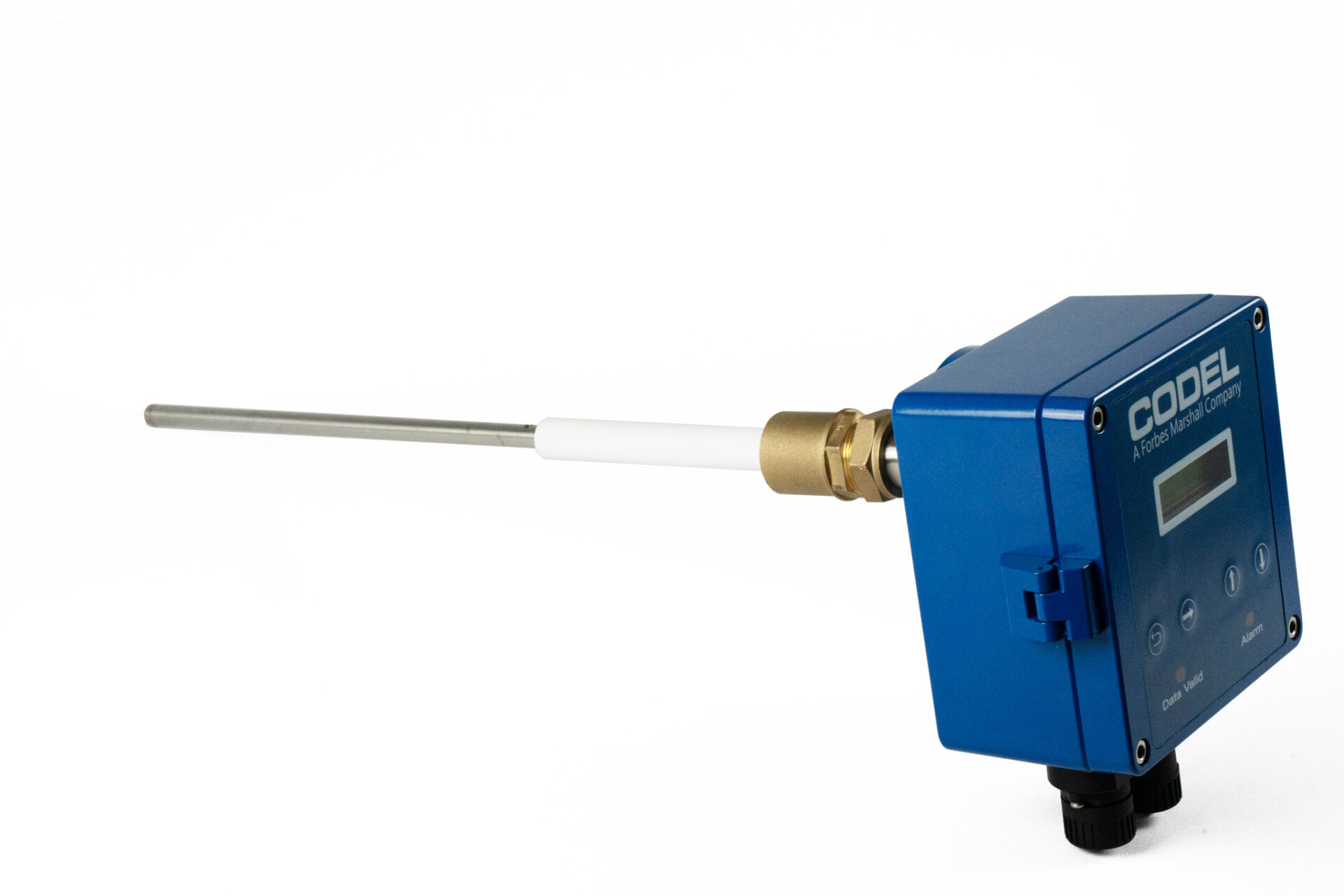

The DCEM 6000 is CODEL’s premium QAL1 triboelectric dust analyser, delivering high-accuracy, continuous emissions monitoring. It provides real-time data to support compliance and optimise filtration performance.
Overview
The DCEM 6000 is CODEL’s flagship triboelectric dust analyser, designed for accurate, continuous monitoring of particulate emissions in industrial processes. Using advanced tribo-electric technology, it detects even the lowest dust levels, helping operators maintain optimal filtration performance and reduce emissions.
QAL1-certified and fully compliant with EN 15267-3 and EN 14181, the DCEM 6000 meets the highest regulatory standards. It is a reliable choice for industries requiring precise emissions data and consistent environmental compliance.
Features & Benefits
- Direct sensing method, actual particulate concentration.
- Automated online zero and span checking facility.
- Integrated calibration function for mg/m3 output.
- Easy installation with minimal maintenance required.
- Certified to EN 14181 (QAL1)
- CODEL Cloud Compatible
Product Specification
| Operating Principle | Triboelectric |
| Certification | EN 14181 & EN 15267-3 *QAL1 0-7.5mg/m3 |
| Supplementary Ranges | 0-15mg/m3, 0-50mg/m3, 0-100mg/m3 |
| Maximum Operating Range | 0 - 500mg/m3 |
| Resolution | 0.01% |
| Response Time | From 30 Seconds |
| Alarm Level | Programmable by user |
| Probe Lengths | 250, 500, 750 & 1000mm |
| Process Temperature | 0°C to +250°C |
| Ambient Temperature | -20°C to +50°C |
| Power Supply | 100-240V AC +/- 10% |
| Construction | Powder coated aluminium casting, weatherproof to IP66 (NEMA 4) |
| Dimensions (mm) | H160 x W160 x D90 |
| Mounting Arrangment | Supplied 1” BSP, 100mm Long Stub Pipe |
| Accuracy | +/- 0.2% |
